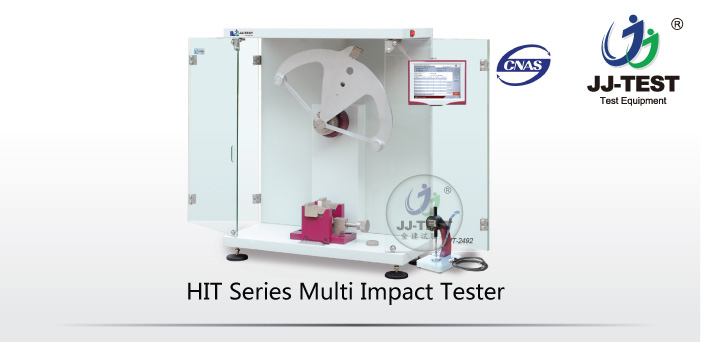

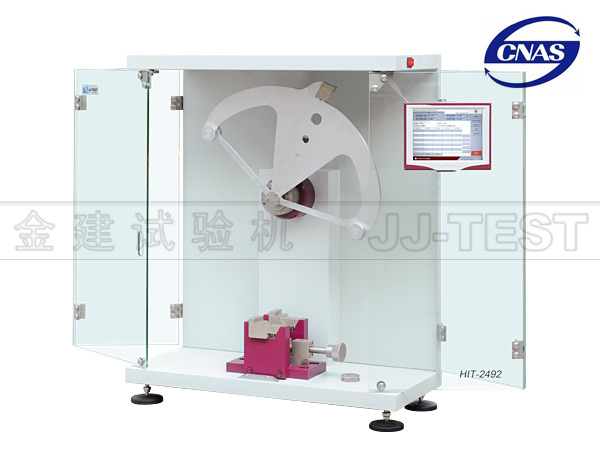

HIT-2492 Pendulum Impact Tester
HIT-2492 Pendulum Impact Tester
Description: High performance Charpy/Izod Impact Teser is a high performance impact tester designed to precisely determine the absorbed impact energy and resistance to breakage of plastic specimens.
Test method： Charpy and Izod
Impact speed： 2.9 m/s(Charpy), 3.5 m/s(Izod)
Control mode： Touch screen
With safety guard.
E-mail： Ava@jinjian-test.com
jiaojj@jinjian-test.com
Standard:
ISO 179, ISO 180, ASTM D 256 and the equivalent.
parameters:
|
model
|
HIT-2492
|
HIT-2494
|
|
Impact speed:
|
3.5m/s,2.9m/s
|
3.5m/s，3.8m/s
|
|
Energy levels:
|
For Izod:1.0J,2.75J,5.5J;
For Charpy: 0.5J,1J,2.0,4.0J,5.0J
|
For Izod: 5.5J,11J,22J;
For Charpy: 7.5J,15.0J,25.0J, 50.0J
|
|
Span of Charpy:
|
62mm
|
|
For Izod:
|
Radius of striking edge: R=0.8mm±0.2mm
Location of striking edge above top surface of support : 22mm±0.05mm
|
|
For Charpy:
|
Radius of striking edge: 2mm±0.5mm Angle of striking edge： 30°±1°
|
|
Measurement resolution:
|
0.01J
|
Model Comparison:
|
model
|
HIT-2492
|
HIT-2494
|
|
Impact speed:
|
3.5m/s,2.9m/s
|
3.5m/s，3.8m/s
|
|
Energy levels:
|
For Izod:1.0J,2.75J,5.5J;
For Charpy: 0.5J,1J,2.0,4.0J,5.0J
|
For Izod: 5.5J,11J,22J;
For Charpy: 7.5J,15.0J,25.0J, 50.0J
|
|
Span of Charpy:
|
62mm
|
|
For Izod:
|
Radius of striking edge: R=0.8mm±0.2mm
Location of striking edge above top surface of support : 22mm±0.05mm
|
|
For Charpy:
|
Radius of striking edge: 2mm±0.5mm Angle of striking edge： 30°±1°
|
|
Measurement resolution:
|
0.01J
|
