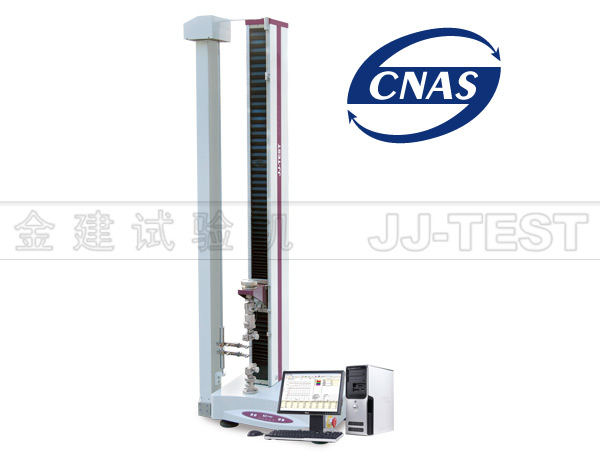

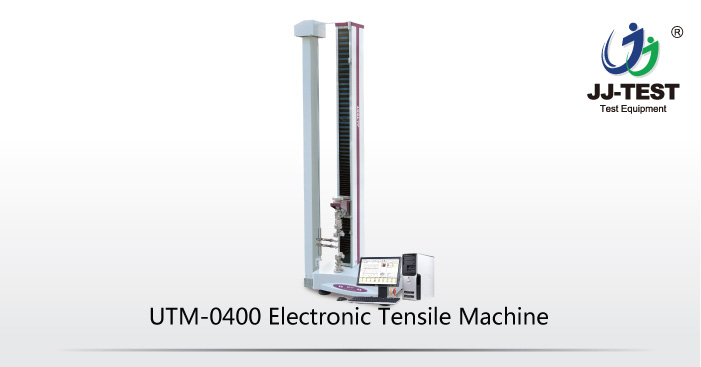

UTM-0400 Electronic Tensile Machine
Application: This machine is specially designed for plastic film and rubber, for yield stress, yield elongation, breaking stress, breaking elongation and tensile strength tests.
E-mail： Ava@jinjian-test.com
jiaojj@jinjian-test.com
1.High working speed: tensile and returning speed may reach to 5000mm/min, largely increase the working efficiency. 2.Multiple safety protection systems: limit position protection, overload protection, emergency stop, etc. 3. Automatic identification of load cells. 4. Load accuracy of +/- 0.2% of load cell value provides high dynamic range, thereby reducing the number of load cells required to cover the full force range. 5. Small tabletop footprint with a large and flexible work space. Date analysis testADT software 1.Large built-in library of test methods meeting international test standards 2.Intuitive user configurable test facility 3.Provides seamless data transfer to excel or html format 4.Possible to analyze and display test data in user definable ways 5.Updated on line for free
Max Force
500N
Accuracy grade
one
Force measuring range
0.2%-100%FS
Relative force error
±1%
Force resolution
1/300000
Deformation measuring range
0.2-100%FS
Relative deformation error
Deformation resolution
Relative error of crossbeam displacement
Large deformation resolution
0.0125mm
Displacement resolution
0.01mm
Test speed range
1mm/min-5000mm/min
Max. tensile space
900mm (500, 700 or 1200mm is optional)
Stress (force) rate control range
0.005-5%FS/S
Relative error of stress (force)
±1% of set value
Strain (deformation) rate control range
0.02-5%FS/S
Relative error of strain (deformation)
Within ±2% (if rate＜0.05%FS)
Within ±0.5% (if rate ≥0.05%FS)
Crossbeam speed range
Relative error of crossbeam speed
Within ±1.0% of set value
Stress (force),strain (deformation) and displacement maintain
0.5%-100%FS
Stress (force) and strain (deformation) maintain
Within ±0.1% (≥10%FS )
Within ±1% (＜10%FS)
Power supply
220VAC-15%-220VAC+10% 50Hz 0.5kVA
Dimension(L×W×H)
450 mm×550 mm×1650mm
Net weight
Approx. 80kg
