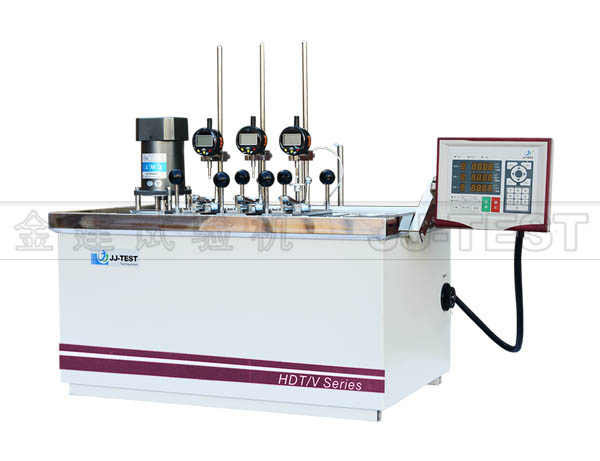

HDT/V-100 HDT/Vicat Tester
HDT/V-100 HDT/Vicat Tester
Application：The tester is used to determine the Heat Deflection Temperature or the Vicat Softening Point. All the specimens are charged with a constant load and immersed in a bath, where temperature is increased at a standard velocity.The attained heat resistance rate of plastic material is a widely required parameter for product characterization, for quality control, as well as for evaluating their conformity to the previewed applications.The optional software system enables to produce graphs showing the deformation of each specimen and temperature increase versus time.
Display mode： LED
Temperature control range： Room temperature～300℃
Numbers of stations： 2/3/4/ 6 (optional)
E-mail： Ava@jinjian-test.com
jiaojj@jinjian-test.com
Features:
LED displays the temperature of medium. With functions of saving/inquire about current testing results, alarming of temperature upper limit, it shall stop heating if arriving at temperature upper limit.
Standard:
|
NO.
|
Name
|
|
ISO 2507
|
《Thermoplastics pipes and fittings -- Vicat softening temperature》
|
|
ISO 75
|
《Heat Deflection Temperature (HDT)》
|
|
ISO 306
|
《Vicat Softening Temperature》
|
|
ASTM D 1525
|
《Standard Test Method for Vicat Softening Temperature of Plastics》
|
|
ASTM D 648
|
《Standard Test Method for Deflection Temperature of Plastics Under Flexural Load in the Edgewise Position》
|
parameters:
|
Type
|
HDT/V-1002
|
HDT/V-1003
|
HDT/V-1004
|
HDT/V-1006
|
|
Numbers of test station
|
2
|
3
|
4
|
6
|
|
Number of temperature measuring point
|
1
|
|
Temperature control range
|
Room temperature～300℃
|
|
Heating rate
|
50℃/h or 120℃/h(30℃/h～120℃/h is settable）
|
|
Max. temperature error
|
±0.5℃
|
|
Deformation measuring device
|
Digital micro gauge
|
|
Deformation measuring range
|
-1.00mm～9.00mm
|
|
Specimen support span
|
64mm or 100mm
|
|
Max. deformation error
|
0.005mm
|
|
Cooling method
|
Natural cooling (Medium temperature is higher than 150℃);
Water cooling or nature cooling(Medium temperature is lower than 150℃)
|
|
Dimensions
(L×W×H)
|
(810×470×780)mm
|
(810m×470×780)mm
|
(990×500×710)mm
|
(990×500×710)mm
|
|
Power supply
|
(220-15% ～220+10%)VAC 50HZ 2.5kW, Single phase and three wires
|
(220-15% ～220+10%)VAC 50HZ 4.5kW , Single phase and three wires
|
