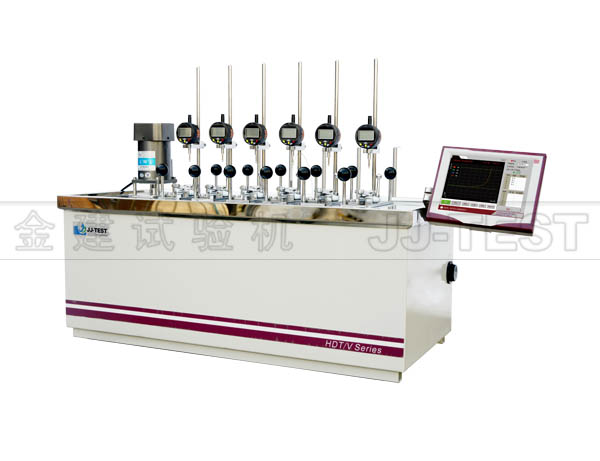

HDT/V-110 Series HDT/Vicat Tester
HDT/V-110 Series HDT/Vicat Tester
Application：The tester is used to determine the Heat Deflection Temperature or the Vicat Softening Point. All the specimens are charged with a constant load and immersed in a bath, where temperature is increased at a standard velocity. The attained heat resistance rate of plastic material is a widely required parameter for product characterization, for quality control, as well as for evaluating their conformity to the previewed applications. The optional software system enables to produce graphs showing the deformation of each specimen and temperature increase versus time.
Control mode： Touch screen or PC
Temperature control range： room temperature ～300℃
Numbers of test station： 2/3/4/6 (optional)
E-mail： Ava@jinjian-test.com
jiaojj@jinjian-test.com
Features:
Controlled by PC or colorful touch screen, equipped with JJTEST software to control and display temperature & deformation, describe and record test curves, output testing result, save historical data as well as print out testing results, etc.
Standard:
|
NO.
|
Name
|
|
ISO 75
|
《Heat Deflection Temperature (HDT)》
|
|
ISO 306
|
《Vicat Softening Temperature》
|
parameters:
|
Type
|
HDT/V-1102
|
HDT/V-1103
|
HDT/V-1104
|
HDT/V-1106
|
|
Numbers of test station
|
2
|
3
|
4
|
6
|
|
Number of temperature measurement point
|
1
|
|
Temperature control range
|
Room temperature～300℃
|
|
Heating rate：
|
50℃/h or 120℃/h ( 30℃/h～120℃/h settable）
|
|
Max. temperature error
|
±0.5℃
|
|
Deformation measuring device
|
Digital microgauge
|
|
Deformation measuring range
|
-1.00mm～9.00mm
|
|
Specimen support span
|
64mm, 100mm
|
|
Max. deformation error
|
0.005mm
|
|
Heating Medium
|
Methyl silicone oil
|
|
Cooling method
|
Natural cooling (Medium temperature is higher than 150℃);
Water cooling or nature cooling(Medium temperature is lower than 150℃)
|
|
Dimension（L×W×H）
|
(990×500×710)mm
|
(990×500×710)mm
|
(990×500×710)mm
|
(1200×500×710)mm
|
|
Power supply
|
2,3 or4 stations
(220-15% ～220+10%)VAC 50HZ
4.5kW, Single phase and three wires
|
6 stations
(220-15%～220+10%)VAC 6.5kW 50HZ, Single phase and three phases
|
