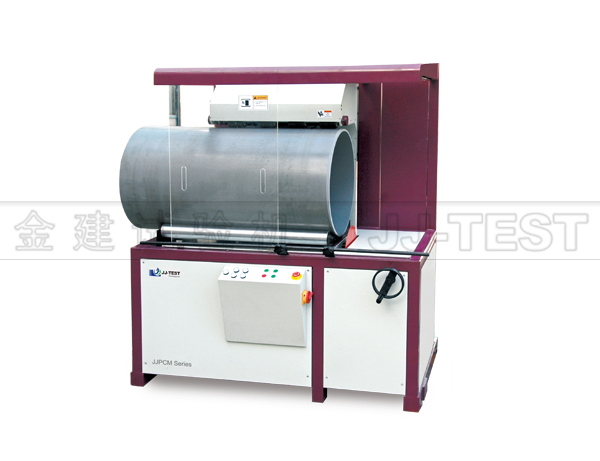

JJPCM-02 Pipe Cutting and Chamfering Machine
JJPCM-02 Pipe Cutting and Chamfering Machine
Application：It is mainly used for cutting and chamfering big pipes. Cooperating with pipe extrusion production line, it is an ideal machine for pipe manufacturer, as well as for quality inspection and research institution.
Pipe diameter: φ 75mm-φ630mm
Chamfering angle: 15 °
Cutting feed by hand wheel
With scrap collector
E-mail： Ava@jinjian-test.com
jiaojj@jinjian-test.com
Features:
1. With the advantages of high automation and humanized protective devices.
2. Modular design, high rigidity of mainframe, pneumatic clamp and planetary cutting method are also the high light of our system.
3. Cutting and chamfering are completed synchronously, largely increasing work efficiency and reducing working strength.
4. The rotating motor, acting automatically after sample well-clamped, stops automatically while compaction released, which is a protection to the operator
5. Electronic soft-start function provides the torque for stable start-up at low speed, which reducing the electromagnetic shock to the power supply system
parameters:
|
Type
|
01
|
02
|
|
Pipe diameter
|
Φ75mm～Φ630mm
|
|
Chamfering angle
|
15°
|
|
Air supply
|
0.4～0.7MPa
|
|
Cutting feeding
|
Hand wheel
|
Handle
|
|
Lifting mode
|
Pneumatic
|
|
Power supply (Mainframe)
|
380（1-15%）VAC～380（1+10%）VAC 4kVA
（Three phase and five wires）
|
|
Weight of mainframe
|
600kg
|
|
Dimension(L×W×H)
|
1680mm×1320mm×1830mm
|
1680mm×1180mm×1830mm
|
|
Power supply
(Scrap collector)
|
380（1-15%）VAC～380（1+10%）VAC 3kVA
（Three phase and five wires）
|
|
Weight of scrap collector
|
80kg
|
|
Dimension of scrap collector(L×W×H)
|
1210mm×500mm×1070mm
|
